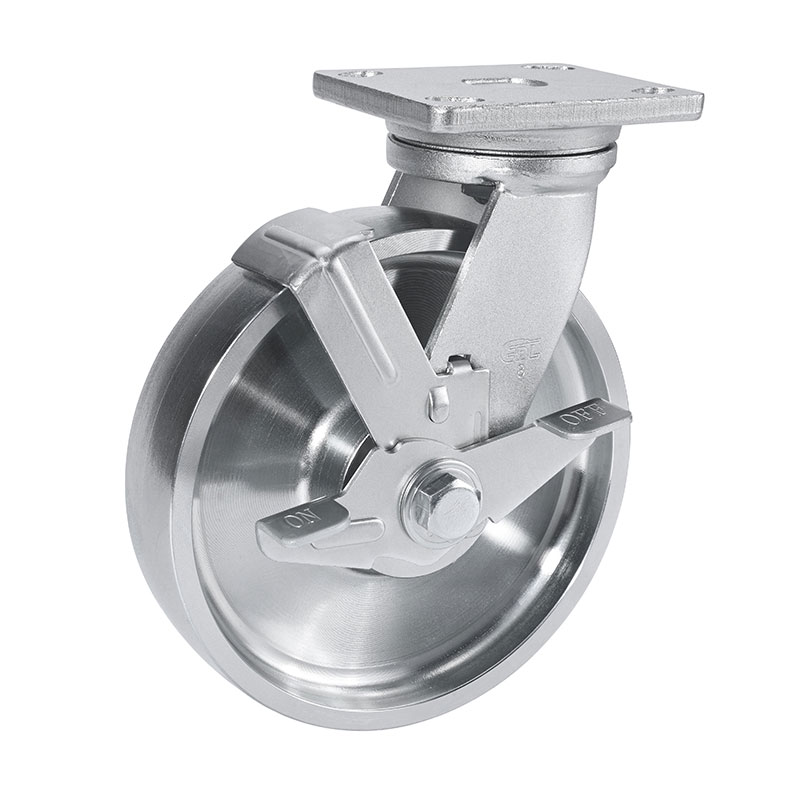

EDL Heavy 8" 1000kg Plate Side Wheel Brake Cast Iron Caster 78128C-788-96/C
  • Product Category:78 Series(700-1000kg)
  • Item NO.:78128C-788-96/C
  • Wheel Diameter:8"(200mm)
  • Mounting Type:Plate Brake
  • Tread Material:Cast Iron
  • Dynamic Load:1000kg
  • Mounting Height :247mm
  • Frame Material:Hot-Rolled Plate
  • Plate Thickness:9.5mm
  • Bracket Thickness:6mm
  • Surface Treatment:Zinc Coating
  • Bracket Width:61mm
  • Wheel width:50mm
  • Bearing:Double Ball Bearing
  • Tread Color: Grey
  • Core Material:/
  • Applicable Temperature:-30℃~120℃
  • Tread Hardness:/
